Zinc Selenide (ZnSe) Right Angle Prism

Zinc selenide right-angle prism deflects incident light by 90° or 180°. When light is incident from one right-angle side of the prism, the light will undergo total internal reflection at the glass/air interface of the beveled side and exit from the other right-angle side. When the light beam is incident from an oblique plane, the beam will be totally reflected at the junction of the two right-angle surfaces with the air, deflected 180° and exit from the oblique plane. UMOPTICS offers zinc selenide(ZnSe) right-angle prisms in a variety of sizes.

Contact Us Online sales@umoptics.com

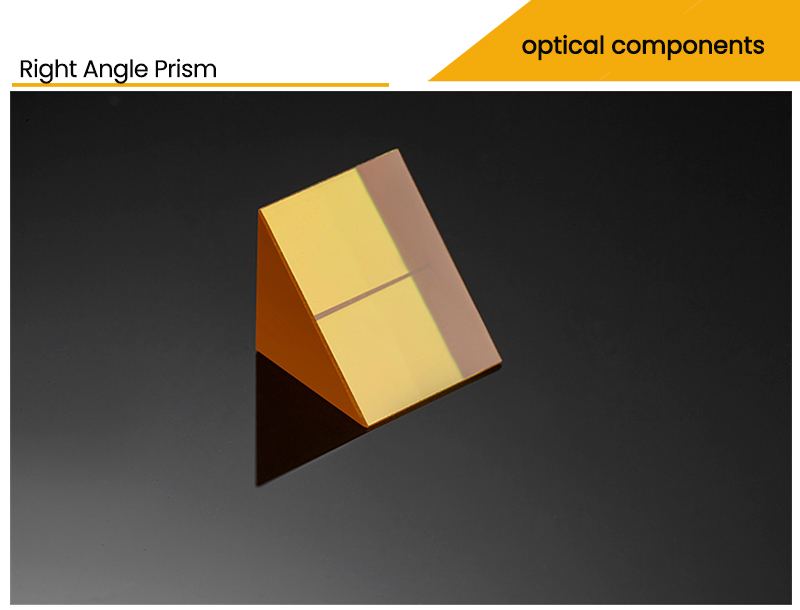

Pictures of zinc selenide right angle prism

Zinc Selenide right-angle prism deflects incident light by 90° or 180°. When light is incident from one right-angle side of the prism, the light will undergo total internal reflection at the glass/air interface of the beveled side and exit from the other right-angle side. When the light beam is incident from an oblique plane, the beam will be totally reflected at the junction of the two right-angle surfaces with the air, deflected 180° and exit from the oblique plane. UMOPTICS offers Zinc Selenidee right-angle prisms in a variety of sizes.

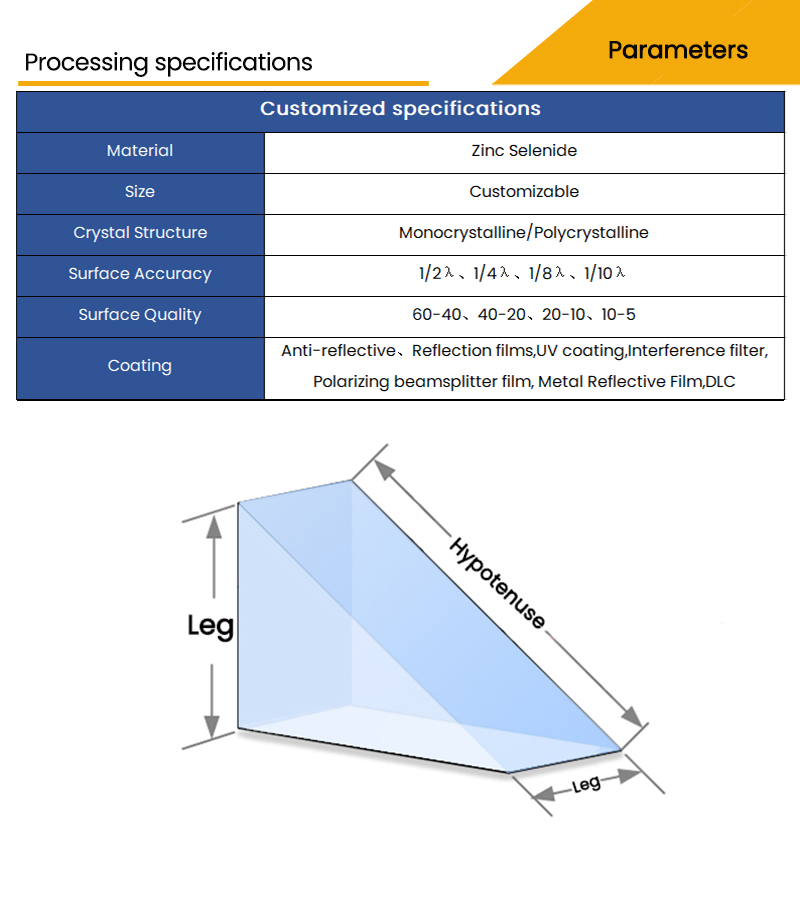

Customized parameters and drawings for zinc selenide right angle prism

Zinc Selenide right-angle prism is a commonly used prism. UMOPTICS can customize Zinc Selenide right-angle prisms in a variety of sizes. Depending on your application, you can choose a anti-reflective film and reflective film.

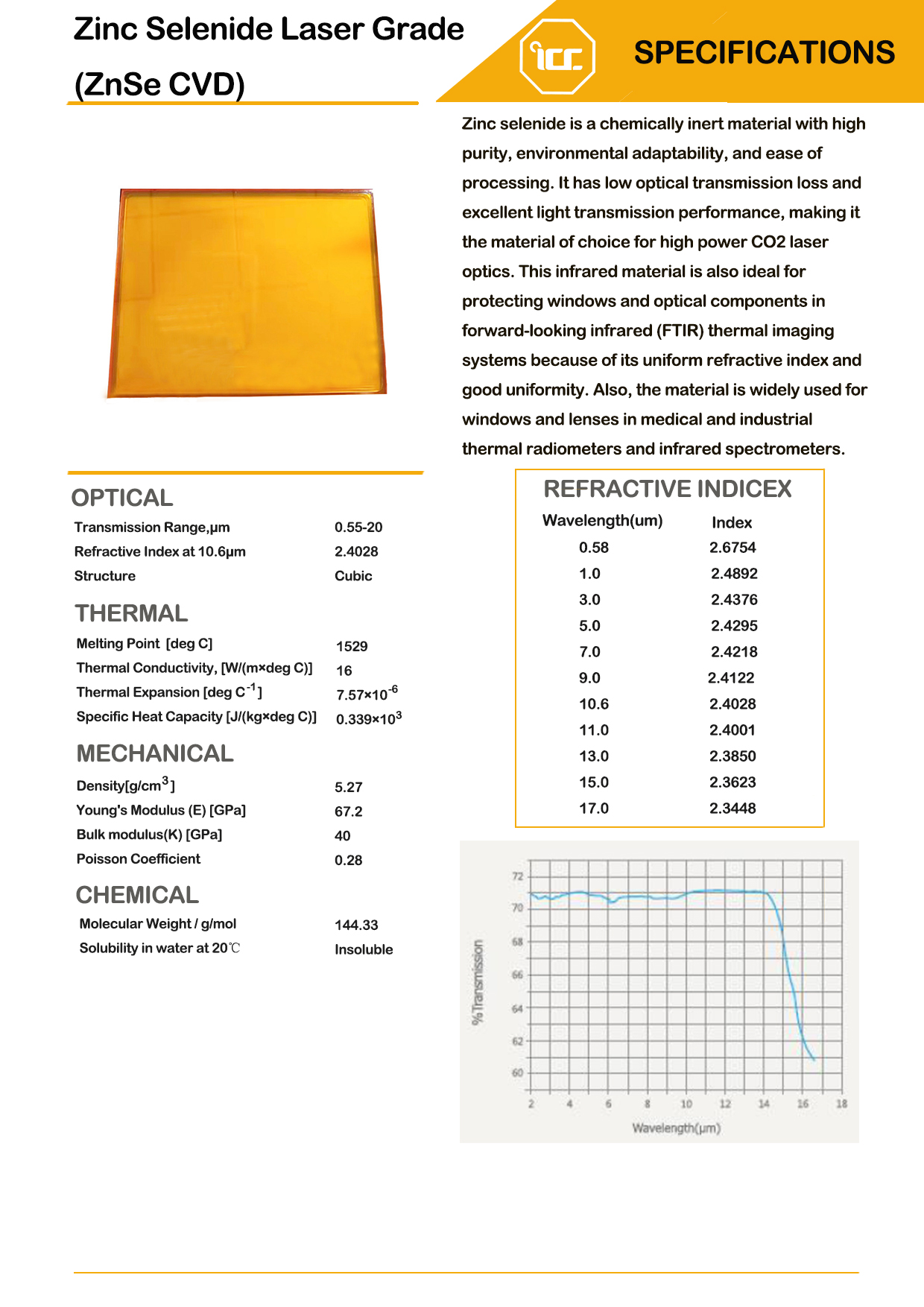

Zinc Selenide right angle prism material data and transmittance curves

Zinc Selenide right angle prism coating options

Coating refers to coating a transparent electrolyte film or metal film on the surface of the substrate material by physical or chemical methods. The purpose is to change the reflection and transmission characteristics of the material surface to reduce or increase the reflection, beam splitting, color separation, light filtering, polarization and other requirements.We can provide various optical coatings such as anti-reflective films, high-reflective films, spectral films, and metallic films. Broadband anti-reflective films are available for UV, visible, NIR and mid-infrared wavelengths.

Growing workshop

Pictures of zinc selenide right angle prism crystal growth workshopCutting workshopPictures of zinc selenide right angle prism crystal cutting workshopPolishing workshopPictures of zinc selenide right angle prism polishing workshopCoating workshopPictures of zinc selenide right angle prism coating workshopAspheric workshoppictures of zinc selenide aspheric lens polishing equipmentZYGO detectionZygo interferometer device for detecting PV of zinc selenide right angle prism
