Home /Products/Optical Components/Scanning Mirror/Fused silica scanning mirrors

Fused Silica Scanning Mirrors

Product Introduction：

   Scanning mirrors are mainly used for galvo scanning system and they are very important optical components in the galvo scanning system. Each beam deflector has a special galvanometer (coated with different optical film can reflect different wavelengths of laser light), and the different deflection of the two lenses can make the laser scan out different graphics, so as to print different models.


Oscilloscope scanning is the laser beam generated by the laser emitting device is first incident on the X-axis oscillator, and then incident on the Y-axis oscillator after reflection, after the second reflection of the Y-axis oscillator can be projected to the working plane, forming a scanning point to complete the image scanning and marking.

Our company can provide various types of galvanometers according to customer's demand.



Contact Us Online sales@umoptics.com

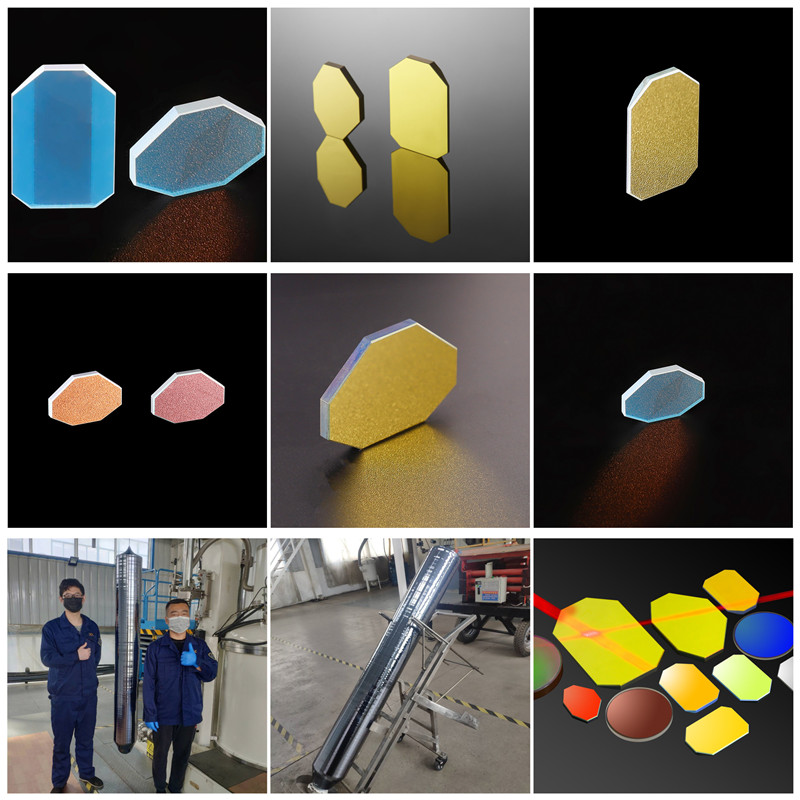

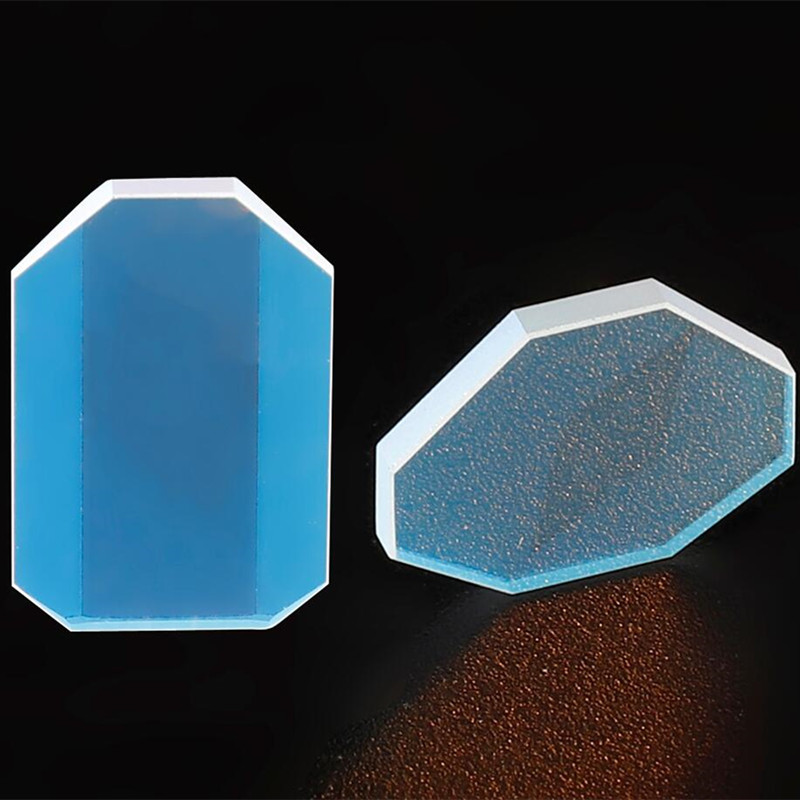

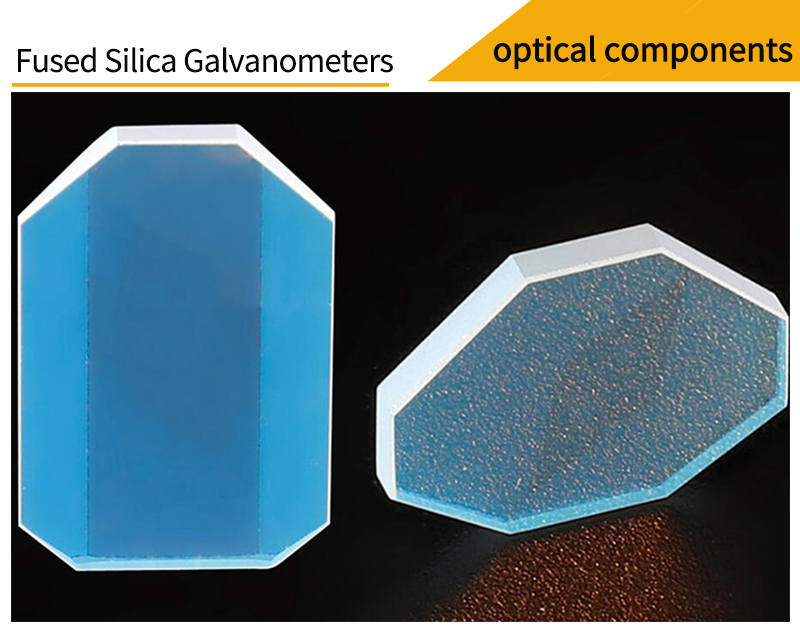

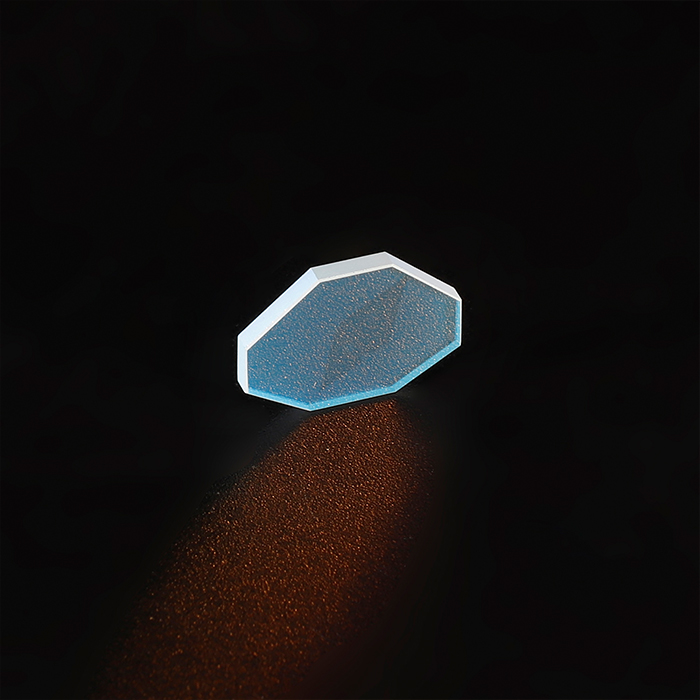

Pictures of fused silica scanning mirrors

Fused silica galvanometers are lightweight rectangular or polygon shaped scanning mirrors that are mainly used in laser scanning systems.The laser scanning system realizes laser marking, laser drilling and laser internal engraving by deflecting the beam deflector composed of X and Y scanning heads driven by the oscillator motor.Our company is available in various sizes of fused silica galvanometers.

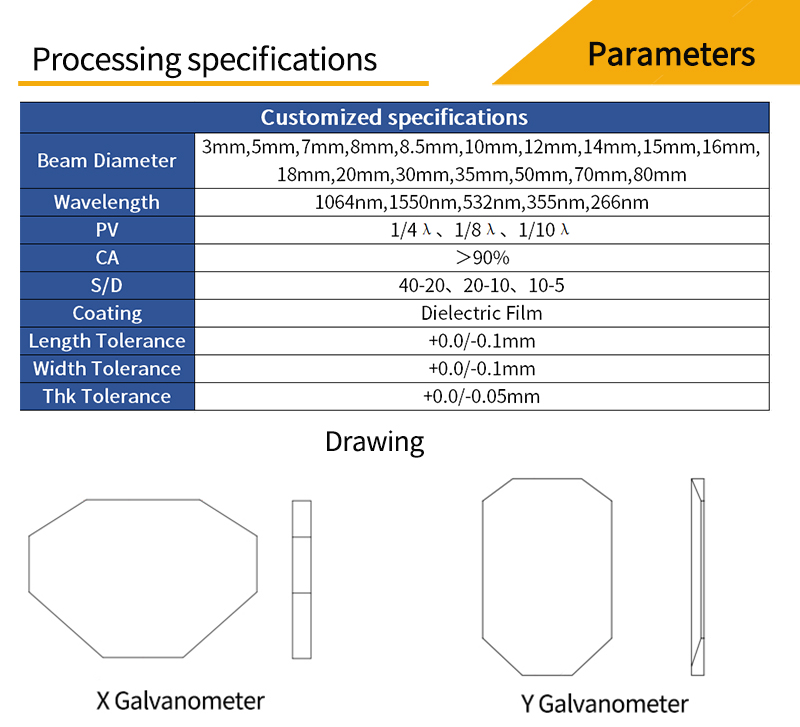

Customized parameters and drawings for fused silica scanning mirrors

Galvanometers are divided into X-galvanometers and Y-galvanometers, which are usually used in sets and are mainly used in laser scanning systems to achieve laser marking. Our company can provide silicon galvanometers with various beam diameters. Our company can provide fused silica galvanometers with  dielectric film, and customers can choose different wavelength and film system according to their needs.

Pictures of fused silica scanning mirrorsThank you for coming

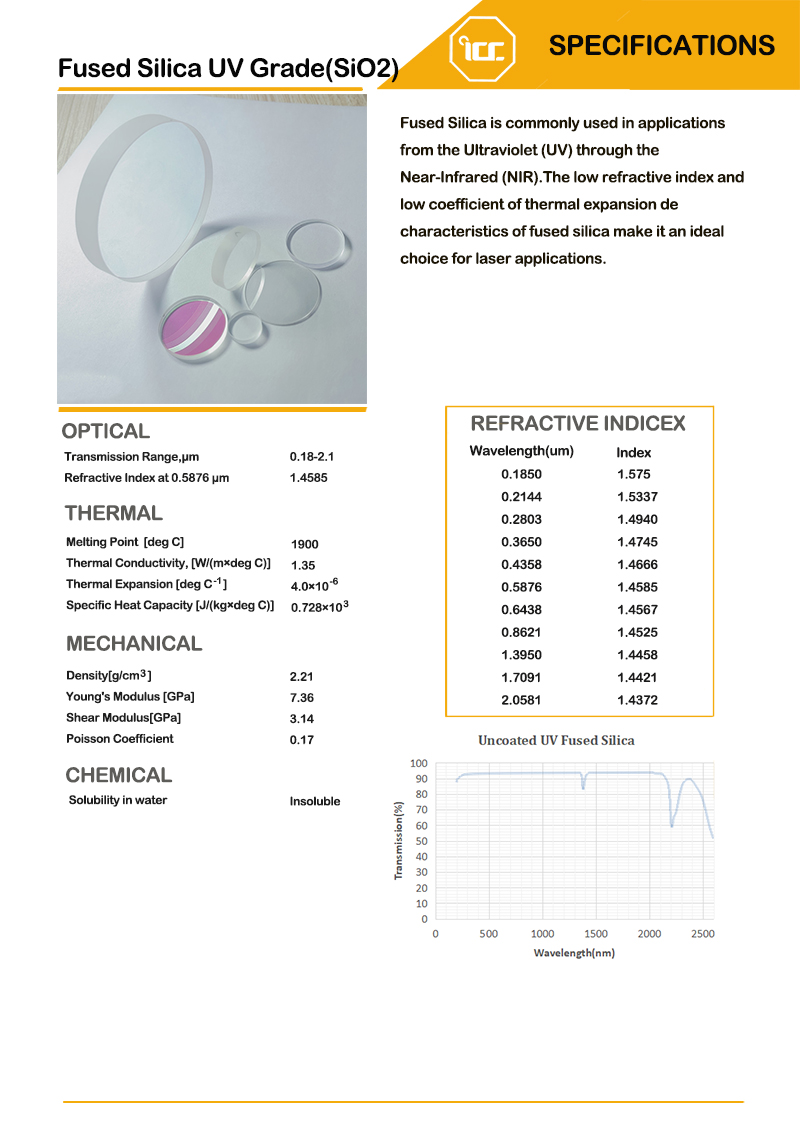

Fused Silica scanning mirrors material data and transmittance curves

Fused Silica scanning mirrors coating options


Growing workshop

Pictures of fused silica scanning mirrors crystal growth workshopCutting workshopPictures of fused silica scanning mirrors crystal cutting workshopPolishing workshopPictures of fused silica scanning mirrors polishing workshopCoating workshopPictures of fused silica scanning mirrors coating workshopAspheric workshoppictures of fused silica aspheric lens polishing equipmentZYGO detectionZygo interferometer device for detecting PV of fused silica scanning mirrors
